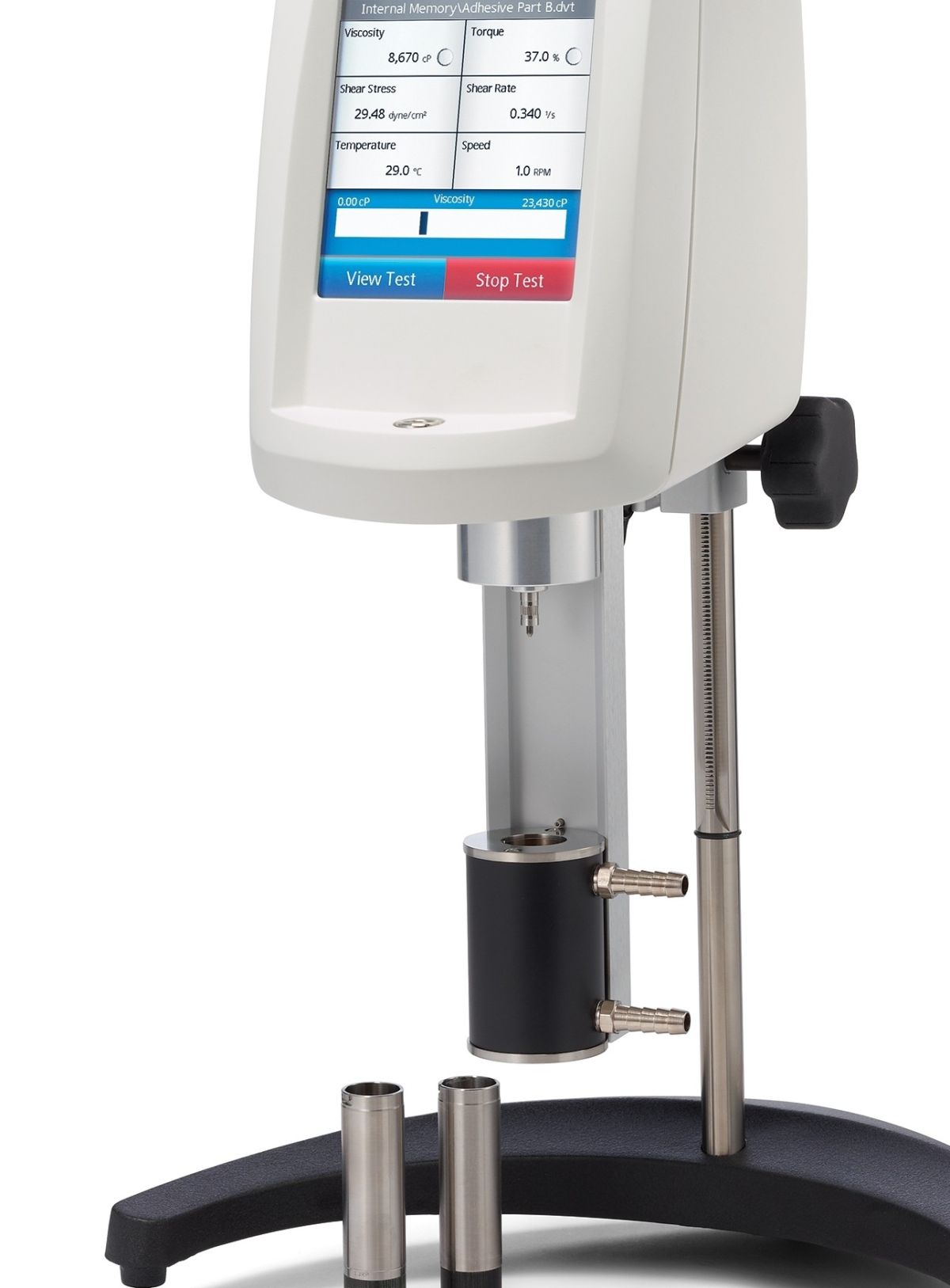

SSA Brookfield博勒飞小量样品适配器

首页 > 维奥网展 > 其它流变仪/粘度计配件 > SSA Brookfield博勒飞小量样品适配器

型号：SSA

品牌：Brookfield/博勒飞

产地：广东广州市

供货周期：一个月以上

应用领域：化工,生物产业,电子/电池,制药/生物制药,综合

留言咨询

产品介绍

技术参数：

SSA小量样品适配器粘度测量范围 cP(mPa·S)

MODEL	Spindle：SC4-18 Sample Chamber*:SC4-13R(P) Sample Volume:6.7ml Shear Rate(sec-1):1.32N	Spindle：SC4-31 Sample Chamber*:SC4-13R(P) Sample Volume:9.0ml Shear Rate(sec-1):.34N	Spindle：SC4-34 Sample Chamber*:SC4-13R(P) Sample Volume:9.4ml Shear Rate(sec-1):.28N	Spindle：SC4-16 Sample Chamber*:SC4-8R(P) Sample Volume:4.2ml Shear Rate(sec-1):.29N	Spindle：SC4-25Z Sample Chamber*:SC4-13R(P) Sample Volume:16.1ml Shear Rate(sec-1):.22N	Spindle：SC4-21 Sample Chamber*:SC4-13R(P) Sample Volume:7.1ml Shear Rate(sec-1):.93N	Spindle：SC4-27(D) Sample Chamber*:SC4-13R(P) Sample Volume:10.4ml Shear Rate(sec-1):.34N	Spindle：SC4-15 Sample Chamber*:SC4-7R(P) Sample Volume:3.8ml Shear Rate(sec-1):.48N	Spindle：SC4-28 Sample Chamber*:SC4-13R(P) Sample Volume:11.0ml Shear Rate(sec-1):.28N	Spindle：SC4-29 Sample Chamber*:SC4-13R(P) Sample Volume:13.5ml Shear Rate(sec-1):.25N	Spindle：SC4-14 Sample Chamber*:SC4-6R(P) Sample Volume:2.1ml Shear Rate(sec-1):.40N
DVNXLV	1.2-30K	12-300K	24-600K	48-1.2M	192-4.8M	Not applicable for historical reasons. However, it is possible to use the above spindles with any of these instruments.to use the above spindles with any of these instruments.if you require information on viscosity range.
DV2TLV	1.5-30K	15-300K	30-600K	60-1.2M	240-4.8M
DVPLLV	1.5-30K	15-300K	30-600K	60-1.2M	240-4.8M
LVT	5-10K	50-100K	100-200K	200-400K	800-1.6M
DVNXRV	However, it is possible to use the abovespindles with any of these instruments.Digital Viscometers/Rheometers willautomatically calculate viscosity. Pleaseyou require information on viscosity range.					20-500K	100-2.5M	200-5M	200-5M	400-10M	500-12.5M
DV2TRV						25-500K	125-2.5M	250-5M	250-5M	500-10M	625-12.5M
DVPLRV						25-500K	125-2.5M	250-5M	250-5M	500-10M	625-12.5M
RVT						50-100K	250-500K	500-1M	500-1M	1K-2M	1.25K-2.5M
DVNXHA						40-1M	200-5M	400-10M	400-10M	800-20M	1K-25M
DV2THA						50-1M	250-5M	500-10M	500-10M	1K-20M	1.25K-25M
DVPLHA						50-1M	250-5M	500-10M	500-10M	1K-20M	1.25K-25M
HAT						100-200K	500-1M	1K-2M	1K-2M	2K-4M	2.5K-5M
DVNXHB						160-4M	800-20M	1.6K-40M	1.6K-40M	3.2K-80M	4K-100M
DV2THB						200-4M	1K-20M	2K-40M	2K-40M	4K-80M	5K-100M
DVPLHB						200-4M	1K-20M	2K-40M	2K-40M	4K-80M	5K-100M
HBT						400-800K	2K-4M	4K-80M	4K-80M	8K-16M	10K-20M

M=1 milion K= 1 thousand N= RPMe.g.Spindle sc4-18 1.32x 10 (rpm)= 13.2sec-1 cP=Centipoise mPas= Milipascal.secondsN/A=无过往应用实例。但粘度计与以上任何样品杯/转子的配套使用都是可行的。数显式粘度计/流变仪可以

性能特点：

小量样品适配器SSA包含圆柱形样品杯和转子，具有精确的几何外形系统，用于在精确的剪切率下，准确测量2~16mL小量样品的粘度。小量样品适配器SSA严谨的流变学圆柱型结构设计，提供了非常精确的粘度测量和剪切率确定。小量样品适配器SSA的设计可实现样品杯轻松更换与清洁，而不影响粘度计或温度水浴的设置。这意味着在相同条件下可以进行连续的测量。样品杯安装在流动夹套中，以便在使用Brookfield循环温度水浴时实现精确控温。使用带有连接至DV1、DV2T、DV3T或DVNext嵌入式RTD温度传感器的样品杯，可实现样品温度的直接读取。小量样品适配器SSA的工作温度范围为1℃~100℃。

特性和优点

对样品量受限的物料进行流变学评估

样品杯易于更换

可选一次性样品杯

通过水浴夹套可快速精确地控制样品温度

订购样品杯嵌入式温度探针可实现样品温度测量同步进行
